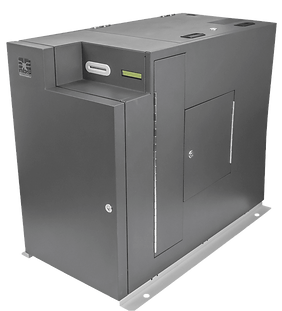

ADVANTAGE M8
Advantage M8 instant issuance embosser makes the ideal all-in-one solution allowing users to encode magnetic strip, program smart chip, print (mono or color), emboss/indent and tip in one pass. The Advantage M8 can reduce customer wait times from weeks to minutes. The Advantage M8 card embosser provides you with the ability to eliminate card delivery failure due to theft and reduce fraud impact of stolen cards. The M8 makes it easy to issue financial or loyalty cards instantly to customers for immediate use.
PRODUCT OVERVIEW
• Instant card issuance
• Dual sided print
• Program smart chips both contact & contactless
• Emboss/ indent and tip in one pass
• Magnetic stripe encoding
• Color and Monochrome thermal printing
• Software lock
• Optional number of card Input hoppers (0-15) (Up to 750 Card Total)
-
Reduce customer wait times from weeks to minutes.
-
Maximize customer face time in your location.
-
Create account lift with instantly available cards.
-
Enjoy 'top of wallet' benefit with unique personalization.
-
Increase opportunities to cross sell other products.
-
Eliminate card delivery failure due to theft.
-
Reduce fraud impact of stolen cards.
-
Anchors for bolting down the embosser to its station.
WHY CHOOSE THE ADVANTAGE M8
•
•
•
•
Industry pioneering technology and development.
Durable and reliable design making the Advantage M8 ideal for Instant Issuance applications.
Established dealer network that covers the globe and supported by our world class support services and training programs.
Innovative software and technologies for security, EMV applications, hardware, software and product training.
TECHNICAL SPECIFICATIONS
Output stacker
Exception card feeder
Individual cassettes with locks
Easy to read LCD panel
Reject stacker
-
SPECIFICATIONSCard Type ISO 7810, 7811 - 1/2/6 PVC card ISO 7816-1/2/-3 (Class A and Class B)/EMV4.0 approved. This card must be free of burrs, bumps and scratches Magnetic Stripe ISO 7811-2 (Low coercivity), 7811-6 (high coercivity) Smart Card (optional) Contact Smart Card - USB connection PCSC coupler from rear Emboss Emboss font capacity - 54 characters (Max 80 character including indent font) Variety of emboss fonts Alpha(10 CPI) A~Z : 26 Num(10 CPI) 0~9 : 10 Num(7 CPI)(OCR-7B) 0~9 : 10 Symbol(10 CPI) - / . ’ , ( ) & : 8 Front and Rear Indent (optional) Rear indent font - OCRB1 0-9; OCRA 0-9 : 10 Mastercard 0-9; Helvetica 0-9 Indent Film Detection: Ribbon-end detection Tipper Tipping foil color: Silver, Gold Tipping Foil Detection: Foil-end detection Printer (optional) Print Mode: Color (Dye-sublimation), Mono (Thermal transfer) Print Resolution: 300 dpi Print Side : Dual side Input (optional number of cassettes - 0 to 5) Input Methods: Automatic or Exception Feed Number of cassette / hopper: 5 cassette / 15 hopper (3 hoppers per cassette) Machine can be configured with 0 to 5 cassettes Input Hopper Capacity: 50 cards / hopper (750 cards total) Security: Software and key lockable hopper cassette Card presence detection: Out of Card detection Output Stacker Output stacker capacity: Approximately 20 cards Security: Software lockable output stacker Card presence detection: Card full detection Rejected Cards Reject stacker capacity: Approximately 25 cards Card presence detection: Card-full detection Card Counter Resettable: Software counter Non-resettable: Mechanical counter Machine Throughput 58 seconds (Mag encode, Emboss, Rear Indent, Tip) 64 seconds (Print Mono, Mag encode, Emboss, Rear Indent, Tip) 81 seconds (Print Color, Mag encode, Emboss, Rear Indent, Tip) Smart card encoding times not included - speed varies based on card specifications Dimensions Machine: 380mm (15”) (W) x 660mm (26”) (H) x 780mm (31”) (D) Machine with anchor plate: 456mm (18”) (W) x 660mm (26”) (H) x 780mm (31”) (D) Weight 85 kg / 187.63 lbs Connection Interface Ethernet and USB (cable 3m in length or less) Driver SDK (NBS Hard coded version in Smartsys software) Warranty 12 months Display LCD display (16 characters per line) Applicable Standard 2004/108/EC, EN55022:2013, FCC 47CFR PT 15 SPT, EN55024:2010 Security • All Access Doors under key lock • Software lock (optional) for front cover (allows for software log of operator who opened front door) • Hopper cassette key lock • Mechanical bolt down capability • Kensington lock compatible Power Rated power: 100-120VAC 4.5A / 220-240VAC 3.0A Rated frequency: 50-60Hz
-
UPGRADES• Front and rear indent • Smart card personalization • Optional number of cassettes (0 to 5) • Software lock for front cover (Allows for software log of operator who opened front cover • Coupled with Xpressi software for EMV brand card issuance
MARKETS THE ADVANTAGE M8 SERVES
FINANCE: NBS has served the financial market for over 40 years and has been at the technological forefront for banks and credit unions. Our continual improvements have helped provide solutions for magnetic stripe cards and smart cards (both contact and contactless).
HEALTHCARE: The Healthcare / Insurance industries have transformed drastically over the last 25 years and NBS has been active in adapting our products and services to fit the requirements of this changing industry.
LOYALTY: Enhance your customer’s loyalty – strengthen relationships, conveniently track valuable data and create powerful brands.
SOLUTIONS
INSTANT ISSUANCE: Enhance your customer’s experience – Conveniently and securely issue personalized cards directly to your customers for immediate use. Organizations that want to introduce instant card issuance, would benefit from the complete NBS Technologies hardware and software solutions. By combining our market leading desktop card embossers with Xpressi instant card issuance software, you can provide your customers with the security and the convenience of an instant card issuance solution. The perfect solution for banks, credit unions and other financial institutions. The NBS Xpressi Instant Issuance solution is simple, secure and cost-effective.
BUNDLES & SOLUTIONS
Our Xpressi card issuance software can be bundled together with selected hardware, to give you a complete solution for selected market/ industry. However, this does not mean you are locked into one package because these bundles are scalable and designed to grow with you. The ability to start small and add more places of issuance when the time is right for you. Our bundled solutions start with as little as one branch/ premises. To find out more information on our bundles, speak to your nearest regional sales manager.
